ART.130 Pipe notching machine

Gullies / Floor Drains

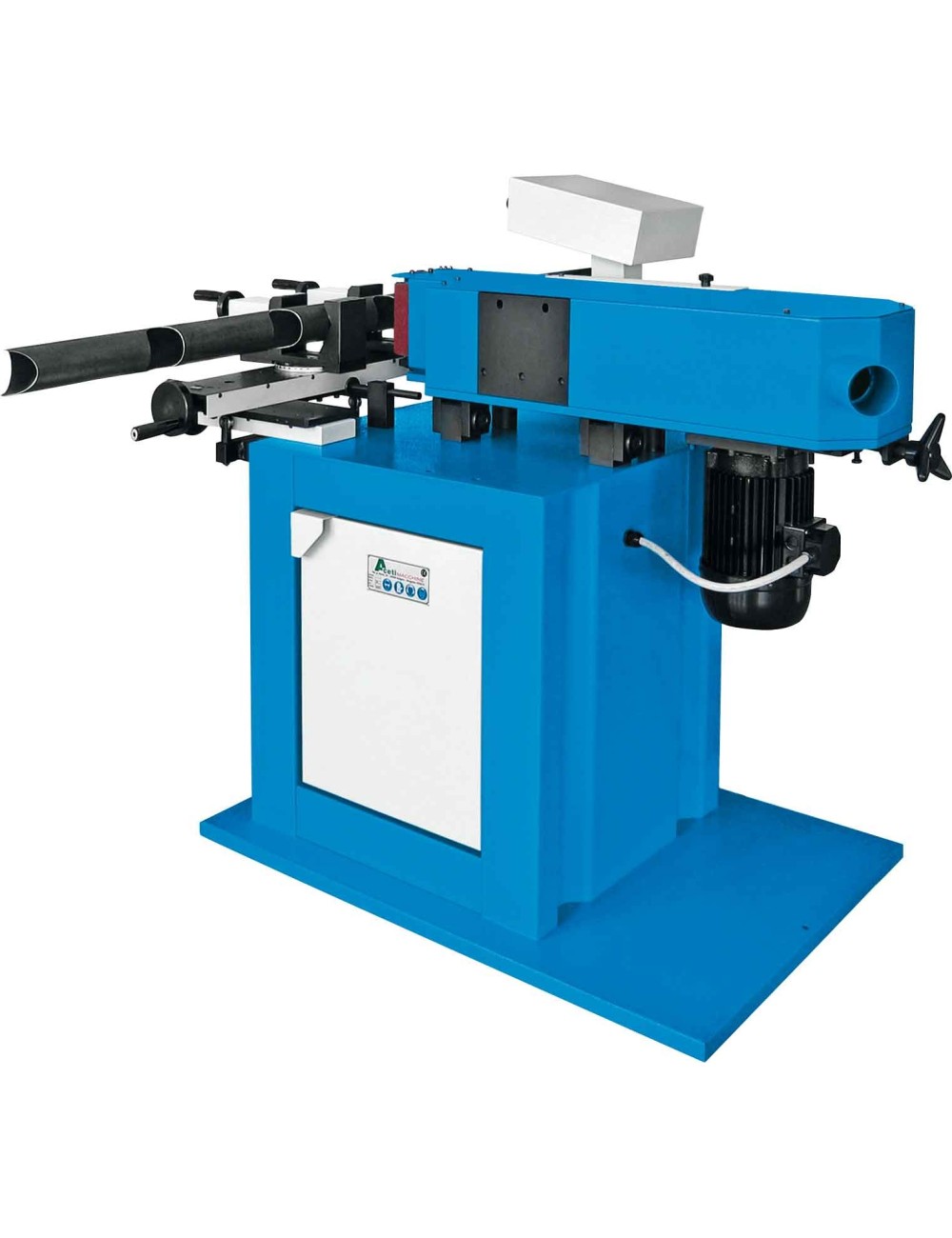

ART.130 Pipe notching machine

Reference:
Contact
close

Request Information - Product










Machine suitable for making "grooves" both at the end and along the length of the pipe.

By simply rotating the machine hinged to the sturdy base, you can quickly switch from the vertical position of the abrasive belt for making grooves along the length of the pipe to the horizontal position suitable for making end grooves.

The machine can work on round, square and rectangular pipes with diameters between 20 and 145 mm.

The cutting angle is adjustable from 30° to 90° and it is also possible to make right and left grooves without having to rotate the pipe in the vice.

Data Sheet

Download (513.8KB)

Brochure

Download (765.32KB)
